View In:   ArcGIS Online Map Viewer

Name: Intersections

Display Field: CWID

Type: Feature Layer

Geometry Type: esriGeometryPoint

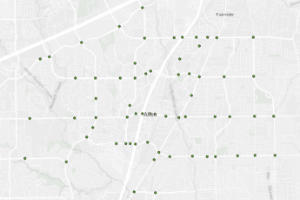

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN>This point feature class represents signaled intersections in Allen Tx with information related to the cabinet at each intersection. It was created in May 2021 from a table provided by the Traffic Department.</SPAN></P><P><SPAN>It will be utilized in Cityworks for signal cabinet work orders or other workflows that are not related to signals, poles or signs.</SPAN></P><P><SPAN>Metadata last updated: 6/2021</SPAN></P></DIV></DIV>

Service Item Id: ec75c5817da14d2a90f3977282f8d5b4

Copyright Text: City of Allen

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 2510578.930356115
YMin: 7078030.036619842
XMax: 2544211.508947432
YMax: 7104255.488932267
Spatial Reference: 102738  (2276)  VCSWkid(115702)  LatestVCSWkid(115702)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [56, 168, 0, 255]
Size: 10.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• CWID ( type: esriFieldTypeString, alias: CW ID, editable: true, nullable: true, length: 20, defaultValue: null, modelName: CWID )
• CabinetUID ( type: esriFieldTypeSmallInteger, alias: Cabinet U ID, editable: true, nullable: true, defaultValue: null, modelName: CabinetUID )
• LocationDesc ( type: esriFieldTypeString, alias: Location Description, editable: true, nullable: true, length: 100, defaultValue: null, modelName: LocationDesc )
• MainStreet ( type: esriFieldTypeString, alias: Main Street, editable: true, nullable: true, length: 80, defaultValue: null, modelName: MainStreet )
• SideStreet ( type: esriFieldTypeString, alias: Side Street, editable: true, nullable: true, length: 80, defaultValue: null, modelName: SideStreet )
• Latitude ( type: esriFieldTypeDouble, alias: Latitude, editable: true, nullable: true, defaultValue: null, modelName: Latitude )
• Longitude ( type: esriFieldTypeDouble, alias: Longitude, editable: true, nullable: true, defaultValue: null, modelName: Longitude )
• StreetSweeping ( type: esriFieldTypeString, alias: Street Sweeping, editable: true, nullable: true, length: 5, defaultValue: No, modelName: StreetSweeping , Coded Values: [Yes: Yes] , [No: No] )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )

Templates:

• Name: Intersections
  Description:
  Prototype:
  StreetSweeping: No
  Longitude: null
  CWID: null
  CabinetUID: null
  LocationDesc: null
  MainStreet: null
  SideStreet: null
  Latitude: null

  Drawing Tool: esriFeatureEditToolPoint

Capabilities: Query,Extract

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: created_date
• Creator Field: created_user
• Edit Date Field: last_edited_date
• Editor Field: last_edited_user

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
